Cable Terminals Connectors

Cable terminal ends connectors are essential components in electrical systems, used to terminate cables and connect them to various devices, equipment, or other cables. Here's some information about them:

1. Types of Cable Terminal Ends Connectors:

   • Crimp-on Connectors: These connectors require a crimping tool to attach them securely to the cable. They come in various shapes and sizes for different cable types.
   • Solder-on Connectors: These connectors require soldering the cable to the connector for a secure connection.
   • Compression Connectors: These connectors use compression force to secure the cable within the connector, often used for coaxial cables and high-voltage applications.

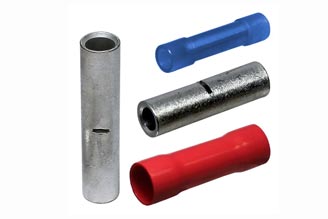

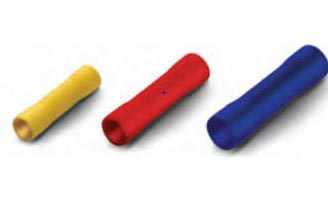

   • Insulated and Non-insulated Connectors: Connectors may come with insulation to prevent electrical shorts or may be non-insulated.

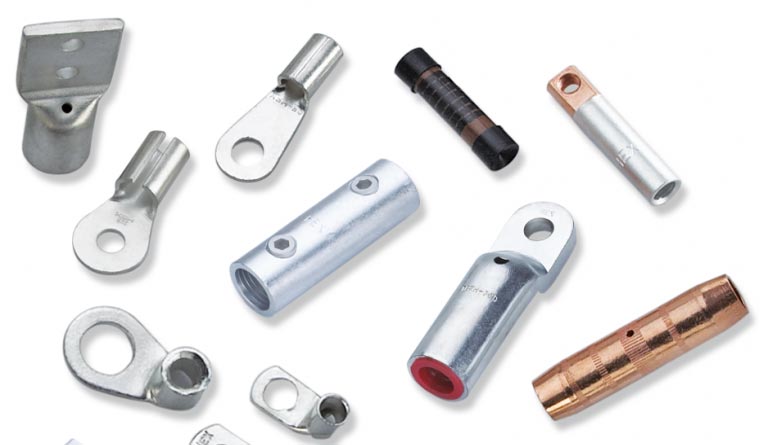

   • Ring, Spade, Fork, and Pin Terminals: These are specific types of connectors designed for different applications. Ring terminals encircle a screw or stud for a secure connection, while spade terminals have flat, fork terminals have a U-shaped end, and pin terminals have a cylindrical end.

2. Materials:

   • Metal: Common materials include copper, aluminum, and brass, chosen for their conductivity, durability, and corrosion resistance.
   • Insulation: Some connectors feature insulation made of materials like PVC, nylon, or heat-shrink tubing to provide electrical insulation and mechanical protection.

3. Applications:

   • Cable terminal ends connectors are used in a wide range of applications across industries, including automotive, aerospace, electronics, telecommunications, and power distribution.
   • They are vital for creating secure and reliable electrical connections in various environments, from household wiring to industrial machinery.

4. Installation:

   • Proper installation is crucial for the safety and performance of electrical systems. Depending on the type of connector, installation may involve crimping, soldering, or compression techniques.
   • It's essential to follow manufacturer guidelines and industry standards to ensure correct installation and optimal performance.

5. Safety Considerations:

   • Incorrectly installed or damaged connectors can lead to electrical hazards, including short circuits, fires, or electrocution.
   • Regular inspection and maintenance of connectors are necessary to identify any signs of wear, damage, or loosening connections.

6. Standards and Regulations:

   • Cable terminal ends connectors must meet specific industry standards and regulations to ensure safety, reliability, and compatibility.
   • Standards organizations like the International Electrotechnical Commission (IEC), Underwriters Laboratories (UL), and National Electrical Manufacturers Association (NEMA) establish guidelines for connector design, performance, and testing.

7. Availability:

   • Cable terminal ends connectors are widely available through electrical supply stores, online retailers, and specialized distributors.
   • They are typically sold in packs or bulk quantities, with options for different wire gauges, connector types, and insulation materials.

Understanding the types, materials, applications, installation procedures, safety considerations, and standards associated with cable terminal ends connectors is essential for selecting the right connectors for specific electrical requirements and ensuring safe and reliable connections.
