Stainless Steel Pipe Bends

Supplies A Full Range Of 304 SS Bends, Stainless Steel Mandrel Bend, 3d pipe bend, Stainless Steel Piggable Bend At Factory Price In India, Check stainless steel long radius bends dimensions

Stainless steel peggable bends( Stainless Steel Pipe Bends) are offered by our company at high quality in India. These bends are used to connect pipes of different diameters. These are available in various specification, grades, shapes and thickness. These bends are widely use in the various industries.

304 stainless steel u bends Manufacturers In India, suppliers of 1d pipe bend, 2d pipe bend, 90 degree pipe bend, Carries A Complete Line Of stainless steel return bends, SS short bend, View 5d radius bend dimensions

Our Bhansali Brothers. long radius bends offer smoother, quieter flow and less back pressure in the conveying and provides less product damage. The other main benefit is that the weld seams on these bends run the length of bend, therefore, it has self-cleaning benefits. Our products are better quality and a more economical price. These bends are polished to specifications.

304 SS bends has a good image due to its high resistance this product is reliable to use for serving various engineering and applications.Stainless steel mandrel bends offer best solution for high exhaust performance. These bends ensure high velocity and flow. All types of mandrel bends are 1.5mm wall thickness and they are manufacture by seamless 304 stainless steel tube. These bends improve the air flow of the vehicle’s engine with the durable construction. It has smooth covering for quality performance, mandrel bending provides a strong, smooth ad seamless bend in the metal alloy.



---

• Outside Diameter: Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
• Wall Thickness: 3mm-40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
• Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

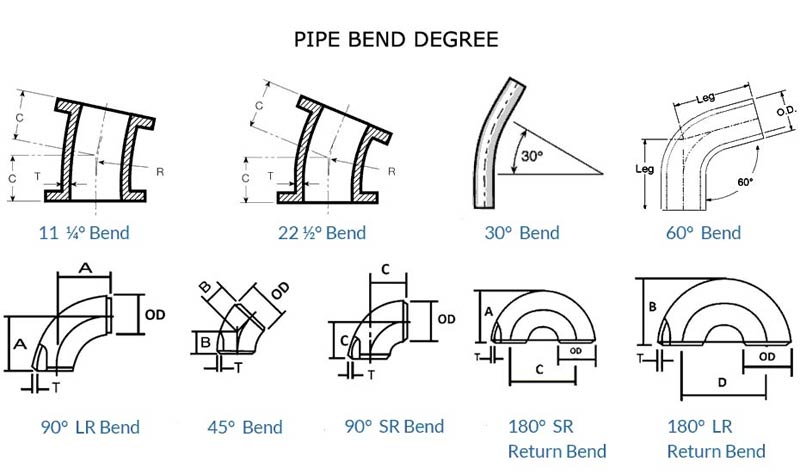

• Product Angle: 0° – 180°
• Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
• Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering



---



---

16 Gauge Stainless Steel Bend Radius

Gauge	Stainless Steel Minimum Bend Radius Includes Minimum Closeness of Cutout to Bend	Stainless Bend Radius (Refers to Inner Radius)
11 gauge (0.120" |3.05mm)	.5"	.07", .08", .09", .1", .125"
14 gauge (0.075" | 1.9 mm)	.275"	.05", .055", .062", .07", .075"
	.375"	.07", .105"
	.5"	.09", .11", .115", .12"
	1.375"	.4"
16 gauge (0.060" | 1.52 mm)	.2"	.035", .05"
	.265"	.05", .055", .075", .08"
	.375"	.07"
	.5"	.105", .12"
18 gauge (0.048" | 1.22 mm)	.2"	.04", .045", .05"
	.265"	.06", .07", .08", .085"
	.375"	.1", .125"
	.5"	.115", .12"
20 gauge (0.035" | 0.89 mm)	.2"	.05"
	.265"	.06", .07"
	.375"	.095"
22 gauge (0.029" | 0.74 mm)	.2"	.05"
	.265"	.04", .08"
24 gauge (0.024" | 0.61 mm)	.2"	.04"
	.265"	.08"



Standard pipe		Spec.	Bauart 5	2,5D
DN	Diameter [ØD]	CLR	CLR	CLR
20	26,9	110		67
25	33,7	110		84
32	42,4	110		106
40	48,3	110		121
50	60,3	125		151
65	76,1		175	190
80	88,9		205	222
100	114,3		270	286
125	139,7		330	350
150	168,3		390	421
200	219,1		510
250	273		650
300	323,9		775
350	355,6		850
400	406,4		970
500	508		1245



---

Stainless steel pipe bends are available in several bend angles, they are obtained through the process of welding as they contain low carbon. The high amount of nickel content manage to prevent sensitization at grain boundaries. These are used to form piping or tubing system which contain 8% nickel and 18% chromium and most commonly used.



---

Materials	Price Range	Unit
SS Exhaust Pipe Mandrel Bend	$3.00-$5.00	USD/Piece
Galvanized pipe bends	$5.00-$7.00	USD/Piece
mandrel bends	$5.00-$7.00	USD/Piece
seamless 5D SS bend	$6.10-$7.60	USD/Kilogram
u bend pipe 304 SS pipe bend	$1.00-$999.00	USD/Piece
SS Pipe Bending	$1.00-$10.00	USD/Piece
Standard 304 SS 45 degree bend	$4.00-$50.00	USD/Piece
Duplexes SS S31803 pipe 90 degree bend	$11.00-$999.00	USD/Piece
Sanitary Vacuum SS pipe bend	$3.20-$6.00	USD/Piece
316 SS long radius 90 degree 10d pipe bend	$1.00-$20.00	USD/Piece
SS pipe fitting 45 degree pipe bend	$1.90-$73.90	USD/Piece
steel 3D pipe bend	$0.50-$100.00	USD/Piece
45 Degree SS GI Z275 Pre-galvanized Air Pipe Bend	$0.90-$18.00	USD/Piece
Sanitary SS Pipe Bend	$2.50-$100.00	USD/Piece
SS Piggable Bend	$1.00-$10.00	USD/Piece
Copper Nickel Piggable Bend	$30.50-$100.00	USD/Piece
Sanitary SS 180 degree pipe Bends	$0.50-$350.00	USD/Piece
schedule 80 carbon steel pipe fittings reducer	$0.90-$199.00	USD/Piece
30 degree SS bend pipe	$1000.00-$3000.00	USD/Piece
SS Pipe Fitting Tube Bend	$1.15-$100.00	USD/Piece
Carbon SS 5D Pipe Bends	$1.00-$90.00	USD/Piece



This is an approximate Cost of Stainless Steel Pipe Bends in India. For factory price buy directly from 304 SS Bends Manufacturers In India, check latest Stainless Steel Piggable Bend price list & stock sizes please mail us.

---

• Stainless Steel Bends; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
• Carbon Steel Bends: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
• Low Temperature Carbon Steel Bends: ASTM A420 WPL3, A420 WPL6
• Alloy Steel Bends: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
• Duplex Steel Bends: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
• Nickel Alloy Bends: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )


Buy Stainless Steel Weld Bends, ss long bend, 304 stainless steel mandrel bends At Factory Price In India, Stokholder of Schedule 10 Stainless steel pipe bends, ss schedule 40 pipe bends, Stainless steel j bends, Check 6d pipe bends, 5d pipe bend dimensions



---

Pipe bend and elbow both for change the pipe direction, still there are a lot of differences in below aspects:

• Bending Radius
• Manufacturing Processes
• Different cost
• Application scope

Bending Radius of Bend and Elbow

Different of manufacturing processes



---



---

The pipe bend is bent by a set of bending equipment with two processes: Cold simmering and hot pushing. (Including bending, squeezing, pressing, forging, machining and etc)

Pipe Bending Machine by Hot Push Manufacturing

Insert the straight pipe into pipe bending machine, heat the pipe and use lever (installed with different dimension of mould) to bend the pipe.



---



---

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS	ALL FITTINGS	ELBOWS AND TEES	180 DEG RETURN BENDS	180 DEG RETURN BENDS	180 DEG RETURN BENDS	REDUCERS	CAPS
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0



NOMINAL PIPE SIZE NPS	ANGULARITY TOLERANCES	ANGULARITY TOLERANCES	ALL DIMENSIONS ARE GIVEN IN INCHES. TOLERANCES ARE EQUAL PLUS AND MINUS EXCEPT AS NOTED.
	Off Angle Q	Off Plane P	(1) Out-of-round is the sum of absolute values of plus and minus tolerance. (2) This tolerance may not apply in localized areas of formed fittings where increased wall thickness is required to meet design requirements of ASME B16.9. (3) The inside diameter and the nominal wall thicknesses at ends are to be specified by the purchaser.(4) Unless otherwise specified by the purchaser, these tolerances apply to the nominal inside diameter, which equals the difference between the nominal outside diameter and twice the nominal wall thickness.
½ to 4	0.03	0.06
5 to 8	0.06	0.12
10 to 12	0.09	0.19
14 to 16	0.09	0.25
18 to 24	0.12	0.38
26 to 30	0.19	0.38
32 to 42	0.19	0.50
44 to 48	0.18	0.75



---

Bending Process	Mandrel Bending CNC Mandrel Bending Roll Bending
Materials	Steel Stainless Steel Aluminum Inconel Titanium Brass Copper Copper-Nickel Alloy 40 (21Cr-6Ni-9Mn Stainless Steel) Hastelloy
Fixturing	In-House Tooling Extensive Selection of Existing Tooling
Tubing Outer Diameter	0.0625″ to 7″
End Finishing Capabilities	Flaring Flattening Expanding Swaging Beading Trimming Facing Victaulic Grooving
Additional Services	Boring Brazing Welding Forming Machining Milling Shearing Grinding Mechanical Assembly Part Marking T-Drill Pullout CNC Machining
Testing & Inspection	CMM Laser Micrometer Air Gauging Borescope Inspection ASTM E1417 Type 1 – Method A (Liquid Penetrant) Hydrostatic Pressure Testing Up To 10,000 lbs. Leak Testing Air Under Water Nitrogen Under Water
Production Volume	Prototype Low Volume High Volume
Lead Time	Quoted on a Job-by-Job Basis



---

• ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
• DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
• EN: EN10253-1, EN10253-2
• ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
• ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
• ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
• MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications



---

1. Move the mandrel forward.
2. Lower the pressure-die setting.
3. Rake the wiper tip.
4. 4Adjust the pressure-die assist setting as needed.



---



---

WEIGHTS OF ELBOW FITTINGS
NPS inches	ELBOWS LR 90°				ELBOWS SR 90°
	Sch. 5S	Sch. 10S	Sch. 40S	Sch. 80S	Sch. 5S	Sch. 10S	Sch. 40S	Sch. 80S
1/2	0.05	0.06	0.08	0.10	0.03	0.04	0.05	0.07
3/4	0.06	0.07	0.09	0.11	0.04	0.05	0.06	0.07
1	0.09	0.15	0.18	0.20	0.06	0.10	0.12	0.13
1 1/4	0.13	0.20	0.25	0.35	0.09	0.13	0.17	0.12
1 1/2	0.18	0.30	0.40	0.50	0.12	0.20	0.27	0.33
2	0.30	0.50	0.70	0.90	0.20	0.33	0.47	0.60
2 1/2	0.60	0.85	1.35	1.80	0.40	0.60	0.90	1.20
3	0.90	1.30	2.00	2.90	0.60	0.90	1.35	1.90
4	1.40	2.00	4.00	5.90	0.90	1.35	2.65	3.90
5	2.90	3.60	6.50	9.70	1.95	2.40	4.35	6.50
6	4.00	5.00	10.5	16.0	2.70	3.35	7.00	10.5
8	7.40	10.0	21.5	33.5	4.90	6.70	14.5	22.5
10	13.6	16.8	38.5	52.5	9.10	11.2	25.6	35.0
12	23.4	27.0	59.0	79.0	15.6	18.0	39.5	53.0
14	29.0	35.0	70.0	94.0	19.3	23.5	47.0	63.0
16	41.3	47.0	95.0	125	27.5	31.5	63.5	84.0
18	51.8	59.0	120	158	34.5	39.5	80.0	105
20	73.0	85.0	146	194	49.0	57.0	98.0	129
24	122	140	210	282	82.0	94.0	140	188
Approximate weights in kg, density 8 kg/dm3





---

Here are a few of the terms you should know:

• 1.5D Bends
• 3D Bends
• 5D Bends
• Rolled Pipe
• Helical Coils
• Serpentine Coils
• Davit Arms
• Press Bending
• Rotary Draw Bending
• Roll Bending
• Three-Roll Push Bending
• Tube Bundles
• Hot Bending
• Cold Bending



---

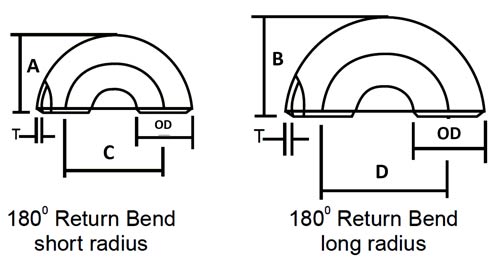

NOMINAL PIPE SIZE	OUTSIDE DIAMETER	BACK TO FACE		CENTER TO CENTER
Inch.	OD	A	B	C	D
1/2	21.3	48	–	76	–
3/4	26.7	43	–	57	–
1	33.4	56	41	76	51
1 1/4	42.2	70	52	95	64
1 1/2	48.3	83	62	114	76
2	60.3	106	81	152	102
2 1/2	73	132	100	191	127
3	88.9	159	121	229	152
3 1/2	101.6	184	140	267	178
4	114.3	210	159	305	203
5	141.3	262	197	381	254
6	168.3	313	237	457	305
8	219.1	414	313	610	406
10	273.1	518	391	762	508
12	323.9	619	467	914	610
14	355.6	711	533	1067	711
16	406.4	813	610	1219	813
18	457.2	914	686	1372	914
20	508	1016	762	1524	1016
22	559	1118	838	1676	1118
24	610	1219	914	1829	1219
	All Dimensions are in mm



---

Nominal PN (MPa)	DN	Thread D	Pipe Specification DH×s	L1	L2	L3 (Not less than)	L (Not less than)	R
32.0	175	M240×6	245×36	120	130	360	1095	735
	200	M265×6	273×40	130	140	390	1209	819
	225	M320×6	325×50	175	185	525	1500	975
	250	M350×6	355.6×55	195	205	580	1650	1070
22.0	175	M215×6	219×24	100	110	300	957	657
	200	M240×6	245×26	110	120	330	1065	735
	225	M265×6	273×29	115	125	345	1164	819
	250	M295×6	299×32	120	130	360	1257	897



---

• Rotary Draw Bending: Pipe or tube is bent using a combination of dies and other various components working in a rotary action. This action draws the pipe or tube forward making the desired bend. Rotary draw bending can also utilize mandrels.
• Mandrel Bending: A mandrel is placed inside the tube or pipe that is being bent, especially with thinner wall materials, to prevent defects that can occur in the piece’s bend such as rippling, flattening, or collapse.
• Compression Bending: Bending a pipe or tube using a stationary die while a counter die bends the material around the stationary die.
• Roll Bending: Used when large radius bends or curves are required, this method passes a piece of pipe or tube through a series of three rollers in a pyramid configuration to achieve the desired curve.



---
