Stainless Steel Pipe Nipple

stainless steel swage nipples manufacturer in India, Get stainless steel threaded hexagon nipples, stainless steel reducing nipples stock, check stainless steel pipe nipple pressure rating

Stainless steel threaded hexagon nipples are manufactured and supply in India at large scale. A threaded hexagon nipples may be a brief pipe typically threading at both ends. Hexagonal nipples have sections in the center for easy torqueing, tightening or loss. It is ideal for use in pumping and industrial applications to connect two other fittings.

Stainless Steel Pipe Nipple

SS swage nipples

stainless steel reducing nipples

find stainless steel pipe nipple dimensions, suppliers of stainless steel hex nipples, stainless steel pipe nipples 304 and 316, stockist of stainless steel seamless pipe nipples, ss reducing nipple, view stainless steel pipe nipple weights

Stainless steel swage nipples are the material heaving greater attributes. These are used in heavy loads, rugged construction. The item is produced by making use of latest technology and modern tools that led to the effective production of concentric swage nipple is brought out of good quality because they passed by various tests such as hardness test, flattening test and other test like chemical test etc. the swage nipples have amazing packaging. These nipples have great resistance to chloride-ion stress corrosion cracking.

Stainless steel reducing nipples has a great use of wide range of industrial applications. All these products are acids clean. These reducing nipples are the low carbon containing material and has good oxidation resistance. They have excellent forming and welding characteristics.

standard specification of b16.9 buttweld stainless steel nipples

Standards	ASME A182, ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, BS3799
Dimension	ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size	1/8"NB TO 4"NB IN
Class	2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type	Socketweld Fittings, Threaded - SCREWED (SCRD) – NPT, BSP, BSPT
Range	Pipe Nipple, Hex Nipple, Swage Nipple, Barrel Nipple

Stainless Steel Pipe Nipples – Seamless, Welded

Schedule 40, Schedule 80, Schedule 160, XXH
5 and 6 Diameters Also Available
304/304L Stainless Pipe Nipples
316/316L Stainless Pipe Nipples
British Pipe Threading Available

steel pipe nipple price in india

Price of Stainless Steel Pipe Nipple manufacturer in India	Stainless Steel Pipe Nipple Price in India (INR)	Stainless Steel Pipe Nipple Price in UK Pound sterling	SS Pipe Nipple Price in UAE Dirham
Stainless Steel Fittings -Ss 316, 1/2 Nb (Pl) X Npt(M) - Sch - 80 Pipe Nipple	66 INR	0.69 UK Pound sterling	3.29 UAE Dirham
Stainless Steel Hex Nipple #3000 Npt 1(Stainless Steel Needle Valve, Pipe Fittings & Forge Fittings 3000 Psi, 6000 Psi	172 INR	1.81 UK Pound sterling	8.58 UAE Dirham
Stainless Steel Fittings: Nipple,Pipe,Bwe 2 1/2 Sch 80 X 10.31 Asme Sa312 S31600	2,043 INR	21.48 UK Pound sterling	101.93 UAE Dirham

This is an approximate Cost of Stainless Steel Pipe Nipple in India. For factory price buy directly from Stainless Steel Swage Nipples Manufacturers In India, check latest Stainless Steel Reducing Nipples price list & stock sizes please mail us.

what is Stainless Steel Pipe Nipple ?

Stainless steel pipe nipple are available in various types such as hex, flat, round and pipe which are repairable and these products are used in various industries, to connect pipelines.

Available Types Of Pipe Nipples At Best Price

Close Nipples
Forged Hex Nipples
Forged Swage Nipples
Screwed Pipe Nippless
Casing Nipples
Flange Nipples
One End Threaded Nipples
Both End Threaded Nipples
Concentric Swaged Nipples

Pipe Nipples
Barrel Nipples
Swage Nipples
Forged Pipe Nipples
Threaded Pipe Nipples
Tubing Nipples
Hexagon Reducing Nipples
Eccentric Swaged Nipples
Close Welded Pipe Nipples

Most Common types of stainless steel pipe nipple ?

stainless steel swage nipples

ss threaded pipe nipples

stainless steel reducing nipples

ss threaded hexagon nipples

Sch. 40 Stainless Steel Seamless Pipe Nipples

ss grease nipples

stainless steel brake bleed nipples

ss hex nipples

stainless steel conduit nipples

stainless steel rabbit water nipples

ss hydraulic hex nipple

b16.9 buttweld stainless steel nipples

Schedule 40 Close Pipe Nipples

King Nipples

stainless steel Combination Nipples

SS Heavy Duty Pipe Nipples

astm standard for pipe nipple

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
ASME B16.25 – Buttwelding Ends ASME B16.28 – ‘Wrought Steel Pipe Nipple & Barrel Nipple
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Material of ss hexagon nipple

Stainless Steel Threaded Pipe Nipples :
ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H
Carbon Steel Threaded Pipe Nipples :
ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel Threaded Pipe Nipples :
ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91
Nickel Alloy Threaded Pipe Nipples :
ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex & Super Duplex Steel Threaded Pipe Nipples :
ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel Threaded Pipe Nipples :
ASTM / ASME SB 111 UNS NO.C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO.C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

1/2 stainless steel pipe nipple pressure rating

Pipe Hex Close Nipples

Connection Type (inch)	Pressure Rating psi (bar)*	Minimum Opening	Dimensions - in.(mm)
Connection Type (inch)	Pressure Rating psi (bar)*	Minimum Opening	A Hex	B
1/4 NPT	15,000	0.219	0.63	1.81
1/4 NPT	(1034.20)	(5.54)	(16.00)	(46.02)
3/8 NPT	15,000	0.297	0.75	1.88
3/8 NPT	(1034.20)	(7.54)	(19.05)	(47.63)
1/2 NPT	15,000	0.359	0.94	2.50
1/2 NPT	(1034.20)	(9.12)	(23.88)	(63.50)
3/4 NPT	10,000	0.609	1.19	2.50
3/4 NPT	(689.46)	(14.47)	(30.23)	(63.50)
1 NPT	10,000	0.765	1.38	3.19
1 NPT	(689.46)	(19.43)	(35.05)	(81.03)

Pipe Hex Nipples

Connection Type (inch)	Pressure Rating psi (bar)*	Minimum Opening	Dimensions - in.(mm)
Connection Type (inch)	Pressure Rating psi (bar)*	Minimum Opening	A Hex	B
1/4 NPT	15,000	0.219	0.63	4.00
1/4 NPT	(1034.20)	(5.54)	(16.00)	(101.60)
1/4 NPT	15,000	0.219	0.63	6.00
1/4 NPT	(1034.20)	(5.54)	(16.00)	(152.40)
1/4 NPT	15,000	0.219	0.63	8.00
1/4 NPT	(1034.20)	(5.54)	(16.00)	(203.20)
3/8 NPT	15,000	0.297	0.75	4.00
3/8 NPT	(1034.20)	(7.54)	(19.05)	(101.60)
3/8 NPT	15,000	0.297	0.75	6.00
3/8 NPT	(1034.20)	(7.54)	(19.05)	(152.40)
3/8 NPT	15,000	0.297	0.75	8.00
3/8 NPT	(1034.20)	(7.54)	(19.05)	(203.20)
1/2 NPT	15,000	0.359	0.94	4.00
1/2 NPT	(1034.20)	(9.12)	(23.88)	(101.60)
1/2 NPT	15,000	0.359	0.94	6.00
1/2 NPT	(1034.20)	(9.12)	(23.88)	(152.40)
1/2 NPT	15,000	0.359	0.94	8.00
1/2 NPT	(1034.20)	(9.12)	(23.88)	(203.20)
3/4 NPT	10,000	0.609	1.19	4.00
3/4 NPT	(689.46)	(14.47)	(30.23)	(101.60)
3/4 NPT	10,000	0.609	1.19	6.00
3/4 NPT	(689.46)	(14.47)	(30.23)	(152.40)
3/4 NPT	10,000	0.609	1.19	8.00
3/4 NPT	(689.46)	(14.47)	(30.23)	(203.20)
1 NPT	10,000	0.765	1.38	4.00
1 NPT	(689.46)	(19.43)	(35.05)	(101.60)
1 NPT	10,000	0.765	1.38	6.00
1 NPT	(689.46)	(19.43)	(35.05)	(152.40)
1 NPT	10,000	0.765	1.38	8.00
1 NPT	(689.46)	(19.43)	(35.05)	(203.20)

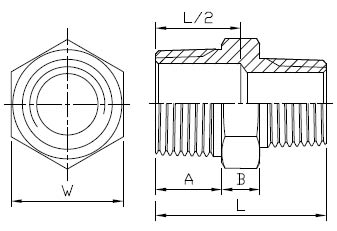

Pipe Hex Reducer Nipples

Connection Type	Pressure Rating psi (bar)*	Minimum Opening	Dimensions - in.(mm)
Connection Type	Pressure Rating psi (bar)*	Minimum Opening	A Hex	B
1/4 to 3/8 NPT	15,000	0.203	0.75	1.88
1/4 to 3/8 NPT	(1034.20)	(5.16)	(19.05)	(47.75)
1/4 to 1/2 NPT	15,000	0.203	0.94	2.31
1/4 to 1/2 NPT	(1034.20)	(5.16)	(23.88)	(58.67)
1/2 to 1 NPT	10,000	0.375	1.38	2.88
1/2 to 1 NPT	(689.46)	(9.53)	(35.05)	(73.15)
3/4 to 1 NPT	10,000	0.500	1.38	2.94
3/4 to 1 NPT	(689.46)	(12.70)	(35.05)	(74.68)

stainless steel pipe nipple size chart

304/304L Stainless Steel Pipe Nipple Sizes:

1/8 X 1 ½	1/4" X 1 ½	3/8 X 1 ½
½ X 1 ½	3/4" X 1 ½	1/8 X 2
1/4" X 2	3/8 X 2	½ X 2
3/4" X 2	1 X 2	1 ¼ X 2
1 1/2 X 2	1/8 X 2 1/2	1/4" X 2 1/2
3/8 X 2 1/2	½ X 2 1/2	3/4" X 2 1/2
1 X 2 1/2	1 ¼ X 2 1/2	1 1/2" X 2 1/2
2 X 2 1/2	1/8 X 3	1/4" X 3
3/8 X 3	½ X 3	3/4" X 3
1 X 3	1 ¼ X 3	1 1/2" X 3
2 X 3	2 1/2" X 3	3 X 3
1/8 X 3 1/2	1/4" X 3 1/2	3/8 X 3 1/2
½ X 3 1/2	3/4" X 3 1/2	1 X 3 1/2
1 ¼ X 3 1/2	1 1/2" X 3 1/2	2 X 3 1/2
2 1/2" X 3 1/2	3" X 3 1/2	1/8 X 4
1/4" X 4	3/8 X 4	½ X 4
3/4" X 4	1 X 4	1 ¼ X 4
1 1/2" X 4	2 X 4	2 1/2" X 4
3" X 4	3 ½ X 4	4" X 4
5" X 4	6" X 4	1/8 X 4 1/2
1/4" X 4 1/2	3/8 X 4 1/2	½ X 4 1/2
3/4" X 4 1/2	1 X 4 1/2	1 ¼ X 4 1/2
1 1/2" X 4 1/2	2 X 4 1/2	2 1/2" X 4 1/2
3" X 4 1/2	4" X 4 1/2	5 X 4 ½
6 X 4 ½	1/8 X 5	1/4" X 5
3/8 X 5	½ X 5	3/4" X 5
1 X 5	1 ¼ X 5	1 1/2" X 5
2 X 5	2 1/2" X 5	3" X 5
4" X 5	5 X 5	6 X 5
1/8 X 5 1/2	1/4" X 5 1/2	3/8 X 5 1/2
½ X 5 1/2	3/4" X 5 1/2	1 X 5 1/2
1 ¼ X 5 1/2	1 1/2" X 5 1/2	2 X 5 1/2
2 1/2" X 5 1/2	3" X 5 1/2	4" X 5 1/2
5 X 5 ½	6 X 5 1/2	1/8 X 6
1/4" X 6	3/8 X 6	½ X 6
3/4" X 6	1 X 6	1 ¼ X 6
1 1/2" X 6	2 X 6	2 1/2" X 6
3" X 6	4" X 6	5 X 6
6 X 6	1/8 X 7	1/4" X 7
3/8 X 7	½ X 7	3/4" X 7
1 X 7	1 ¼ X 7	1 1/2" X 7
2 X 7	2 1/2" X 7	3" X 7
4" X 7	5 X 7	6 X 7
1/8 X 8	1/4" X 8	3/8 X 8
½ X 8	3/4" X 8	1 X 8
1 ¼ X 8	1 1/2" X 8	2 X 8
2 1/2" X 8	3" X 8	4" X 8
5 X 8	6 X 8	1/8 X 9
1/4" X 9	3/8 X 9	½ X 9
3/4" X 9	1 X 9	1 ¼ X 9
1 1/2" X 9	2 X 9	2 1/2" X 9
3" X 9	4" X 9	5 X 9
6 X 9	1/8 X 10	1/4" X 10
3/8 X 10	½ X 10	3/4" X 10
1 X 10	1 ¼ X 10	1 1/2" X 10
2 X 10	2 1/2" X 10	3" X 10
4" X 10	5 X 10	6 X 10
1/8 X 11	1/4" X 11	3/8 X 11
½ X 11	3/4" X 11	1 X 11
1 ¼ X 11	1 1/2" X 11	2 X 11
2 1/2" X 11	3" X 11	4" X 11
5 X 11	6 X 11	1/8 X 12
1/4" X 12	3/8 X 12	½ X 12
3/4" X 12	1 X 12	1 ¼ X 12
1 1/2" X 12	2 X 12	2 1/2" X 12
3" X 12	4" X 12

316/316L Stainless Steel Pipe Nipple Sizes:

1/8 X 1 ½	1/4" X 1 ½	3/8 X 1 ½
½ X 1 ½	3/4" X 1 ½	1/8 X 2
1/4" X 2	3/8 X 2	½ X 2
3/4" X 2	1 X 2	1 ¼ X 2
1 1/2 X 2	1/8 X 2 1/2	1/4" X 2 1/2
3/8 X 2 1/2	½ X 2 1/2	3/4" X 2 1/2
1 X 2 1/2	1 ¼ X 2 1/2	1 1/2" X 2 1/2
2 X 2 1/2	1/8 X 3	1/4" X 3
3/8 X 3	½ X 3	3/4" X 3
1 X 3	1 ¼ X 3	1 1/2" X 3
2 X 3	2 1/2" X 3	3 X 3
1/8 X 3 1/2	1/4" X 3 1/2	3/8 X 3 1/2
½ X 3 1/2	3/4" X 3 1/2	1 X 3 1/2
1 ¼ X 3 1/2	1 1/2" X 3 1/2	2 X 3 1/2
2 1/2" X 3 1/2	3" X 3 1/2	1/8 X 4
1/4" X 4	3/8 X 4	½ X 4
3/4" X 4	1 X 4	1 ¼ X 4
1 1/2" X 4	2 X 4	2 1/2" X 4
3" X 4	3 ½ X 4	4" X 4
5" X 4	6" X 4	1/8 X 4 1/2
1/4" X 4 1/2	3/8 X 4 1/2	½ X 4 1/2
3/4" X 4 1/2	1 X 4 1/2	1 ¼ X 4 1/2
1 1/2" X 4 1/2	2 X 4 1/2	2 1/2" X 4 1/2
3" X 4 1/2	4" X 4 1/2	5 X 4 ½
6 X 4 ½	1/8 X 5	1/4" X 5
3/8 X 5	½ X 5	3/4" X 5
1 X 5	1 ¼ X 5	1 1/2" X 5
2 X 5	2 1/2" X 5	3" X 5
4" X 5	5 X 5	6 X 5
1/8 X 5 1/2	1/4" X 5 1/2	3/8 X 5 1/2
½ X 5 1/2	3/4" X 5 1/2	1 X 5 1/2
1 ¼ X 5 1/2	1 1/2" X 5 1/2	2 X 5 1/2
2 1/2" X 5 1/2	3" X 5 1/2	4" X 5 1/2
5 X 5 ½	6 X 5 1/2	1/8 X 6
1/4" X 6	3/8 X 6	½ X 6
3/4" X 6	1 X 6	1 ¼ X 6
1 1/2" X 6	2 X 6	2 1/2" X 6
3" X 6	4" X 6	5 X 6
6 X 6	1/8 X 7	1/4" X 7
3/8 X 7	½ X 7	3/4" X 7
1 X 7	1 ¼ X 7	1 1/2" X 7
2 X 7	2 1/2" X 7	3" X 7
4" X 7	5 X 7	6 X 7
1/8 X 8	1/4" X 8	3/8 X 8
½ X 8	3/4" X 8	1 X 8
1 ¼ X 8	1 1/2" X 8	2 X 8
2 1/2" X 8	3" X 8	4" X 8
5 X 8	6 X 8	1/8 X 9
1/4" X 9	3/8 X 9	½ X 9
3/4" X 9	1 X 9	1 ¼ X 9
1 1/2" X 9	2 X 9	2 1/2" X 9
3" X 9	4" X 9	5 X 9
6 X 9	1/8 X 10	1/4" X 10
3/8 X 10	½ X 10	3/4" X 10
1 X 10	1 ¼ X 10	1 1/2" X 10
2 X 10	2 1/2" X 10	3" X 10
4" X 10	5 X 10	6 X 10
1/8 X 11	1/4" X 11	3/8 X 11
½ X 11	3/4" X 11	1 X 11
1 ¼ X 11	1 1/2" X 11	2 X 11
2 1/2" X 11	3" X 11	4" X 11
5 X 11	6 X 11	1/8 X 12
1/4" X 12	3/8 X 12	½ X 12
3/4" X 12	1 X 12	1 ¼ X 12
1 1/2" X 12	2 X 12	2 1/2" X 12
3" X 12	4" X 12

316 Close Pipe Nipple Sizes:

1/8 X Close, 1/4" X Close, 3/8 X Close, ½ X Close, 3/4" X Close, 1 X Close, 1 ¼ X Close, 1 1/2" X Close, 2 X Close, 2 1/2" X Close, 3" X Close, 4" X Close

Determine the length of "close" nipples needed for your pipe size
Pipe Size	1/8	1/4	3/8	1/2	3/4"	1"	1 1/4	1 1/2	2"	2 1/2	3"	4"
Close Length	3/4"	7/8"	1"	1 1/8	1 3/8	1 1/2	1 5/8"	1 3/4"	2"	2 1/2	2 5/8"	2 7/8"
For example, if the pipe size is 3/8", then the close length is 1"

difference between pipe nipple vs reducer

A reducer is a tool that is used for reducing the main pipe size.It helps the main pipe run to a smaller one easily.There are two types of reducers in the market: concentric reducer and eccentric reducer.
A swage nipple is something similar to that of a reducer but it is used to join the butt welded pipe with a socket welded or screwed pipe.Like the reducer,swage nipple is also available with two variations:concentric swage nipple and eccentric swage nipple.

Some of the differences between reducer and swage nipple are provided below.

1.Difference in size ranges of a swage nipple and steel reducer:

The size range of the reducer is wide.The current size standard of the reducer is from DN15 to DN3400 (from 1/2″ to 136″),while the specification of the swage nipple is from DN6 to DN300 (from 1/4″ to 12″).

2.The swage nipple and reducer raw materials are different:

The raw materials of reducers is seamless steel pipes or steel plates,and the raw materials of swage nipple is round bar steel or billet steel.

3. Difference in manufacturing processes of swage nipple and reducer:

The manufacturing process of the reducer is that we adopt the heat pressing process or the cold pressing process for the seamless reducer(the heat treatment is required for the cold pressing process) and we adopt the hot rolling process for the other reducer. The manufacturing process of the swage nipple is the forging process.

4.The connection ends of a swage nipple and a reducer are different:

Beveled ends are basically adopted for reducers, and plain ends are hardly adopted for reducers.Although the plain end are allowed to be used for the stainless steel or the carbon steel reducer product whose wall thickness is lower than a certain amount.Swage nipples have more connection ends,and two ends of swage nipples can be the same or different based on the requirements of sites or designs;connection ends of swage nipples can be divided into beveled ends,plain ends and threaded ends three kinds.

Different connection ends of swage nipples

Specifications
1. When we select the swage nipple,we should mark the end.We should also mark NPT or R for taper pipe threads.
2. Big ends and small ends of swage nipples can be divided into plain ends,beveled ends and taper pipe threaded ends three kinds;the following is a table for nine combinations of big and small ends.
Type	Big End	Small End	Code
A	plain ends	plain ends	BEP
B	plain ends	beveled ends	LEP/SEB
C		threaded ends	LEP/SET
D	beveled ends	plain ends	LEB/SEP
E	beveled ends	beveled ends	BEB
F		threaded ends	LEB/SET
G	threaded ends	plain ends	LET/SEP
H	Thread	beveled ends	LET/SEB
I		threaded ends	BET
3. Wall thicknesses of swage nipples are generally Sch80 (3000LB) or Sch160 (6000LB).

stainless steel pipe nipple weights

Nom. Pipe Size	L			Plain End Weight (kg/m)
Nom. Pipe Size	Close Nipple	Short Nipple	Long Nipple	Sch40/STD	Sch80/XS	Sch160	XXS
1/8	3/4	1-1/2	2~12	0.37	0.47
1/4	7/8	1-1/2	2~12	0.63	0.80
3/8	1	1-1/2	2~12	0.84	1.10
1/2	1-1/8	1-1/2	2~12	1.27	1.62	1.95	2.55
3/4	1-3/8	2	2-1/2~12	1.69	2.20	2.90	3.64
1	1-1/2	2	2-1/2~12	2.50	3.24	4.24	5.45
1-1/4	1-5/8	2-1/2	3~12	3.39	4.47	5.61	7.77
1-1/2	1-3/4	2-1/2	3~12	4.05	5.41	7.25	9.55
2	2	2-1/2	3~12	5.44	7.48	11.11	13.44
2-1/2	2-1/2	3	3-1/2~12	8.63	11.41	14.92	20.39
3	2-5/8	3	3-1/2~12	11.29	15.27	21.35	27.68
3-1/2	2-3/4	4	4-1/2~12	13.57	18.64
4	2-7/8	4	4-1/2~12	16.08	22.32	33.54	41.03
5	3	4-1/2	5~12	21.77	30.97	49.12	57.43
6	3-1/8	4-1/2	5~12	28.26	42.56	67.57	79.22

stainless steel pipe nipple dimensions

SS Pipe Nipple & Barrel Nipple dimensions

stainless steel pipe nipple dimensions

S.40 Stainless Steel Barrel Nipple Dimensions: Unit mm
SIZE	1/8"	1/4"	3/8"	1/2"	3/4"	1"
S	1.7	2.0	2.0	2.5	2.5	3.2
L	40.0	40.0	40.0	60.0	60.0	60.0
SIZE	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"
S	3.2	3.2	3.6	3.6	4.0	4.5
L	80.0	80.0	100.0	100.0	120.0	120.0

Reducing Nipple Dimensions

Reducing Nipple Dimensions

Standard Pattern

SIZE		A		B		L		W
SIZE		mm	in	mm	in	mm	in	mm	in
1/4	1/8	13	0.51	6	0.24	31	1.22	15.1	0.59
3/8	1/8	14	0.55	7	0.28	34	1.34	18.6	0.73
3/8	1/4	14	0.55	7	0.28	34	1.34	18.6	0.73
1/2	1/8	16.5	0.65	8	0.31	36.5	1.44	23	0.91
	1/4	16.5	0.65	8	0.31	36.5	1.44	23	0.91
	3/8	16.5	0.65	8	0.31	36.5	1.44	23	0.91
3/4"	1/8	16	0.63	8	0.31	40	1.57	29	1.14
	1/4	16	0.63	8	0.31	40	1.57	29	1.14
	3/8	17	0.67	8	0.31	41	1.61	28.5	1.12
	1/2	17	0.67	8	0.31	41.5	1.63	28.5	1.12
1"	1/4	20	0.79	9	0.35	41	1.61	35.4	1.39
	3/8	20	0.79	9	0.35	42.5	1.67	35.4	1.39
	1/2	20	0.79	9	0.35	45	1.77	35.4	1.39
	3/4"	20	0.79	9	0.35	45	1.77	35.4	1.39
1-1/4	1/4	21	0.83	10	0.39	42	1.65	44.5	1.75
	3/8	21	0.83	10	0.39	47	1.85	44.5	1.75
	1/2	21	0.83	10	0.39	49	1.93	44.5	1.75
	3/4"	21	0.83	10	0.39	49	1.93	44.5	1.75
	1"	22	0.87	10	0.39	52	2.05	44.5	1.75
1-1/2	1/4	20	0.79	10.5	0.41	42.5	1.65	51	2.01
	3/8	21	0.83	10	0.39	47	1.85	50	1.97
	1/2	21	0.83	10	0.39	49	1.93	50	1.97
	3/4"	21	0.83	10	0.39	49	1.93	50	1.97
	1"	21.5	0.85	11	0.39	52.5	2.07	50	1.97
	1-1/4	22	0.87	11	0.43	55	2.17	51	2.01
2"	3/8	23	0.91	11	0.43	52	2.05	61.5	2.42
	1/2	23	0.91	11	0.43	52	2.05	61.5	2.42
	3/4"	23	0.91	11	0.43	41.5	1.63	61.5	2.42
	1"	23	0.91	11	0.43	53.5	2.11	61.5	2.42
	1-1/4	23	0.91	11	0.43	56	2.2	61.5	2.42
	1-1/2	23	0.91	11	0.43	55.5	2.19	61.5	2.42
2-1/2	3/4"	27.5	1.08	13	0.51	64	2.52	78	3.07
	1"	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	1-1/4	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	1-1/2	27.5	1.08	13	0.51	63.5	2.5	78	3.07
	2"	27.5	1.08	13	0.51	65.5	2.58	78	3.07
3"	1-1/2	28	1.1	15	0.59	68	2.68	92	3.62
	2"	28	1.1	15	0.59	68.5	2.7	93	3.66
	2-1/2	28.5	1.12	15	0.59	71	2.8	92	3.62
4"	2"	30	1.18	15	0.59	75	2.95	117	4.61
	2-1/2	30	1.18	15	0.59	75	2.95	117	4.61
	3"	30	1.18	15	0.59	75	2.95	117	4.61

Tolerance: +0.5mm(1/8"~2")

+0.8mm(2-1/2"~4")

Economic Pattern

SIZE		A		B		L		W
SIZE		mm	in	mm	in	mm	in	mm	in
1/4	1/8	11	0.43	6	0.24	29	1.14	15	0.59
3/8	1/8	12	0.47	7	0.28	31	1.22	18	0.71
3/8	1/4	12	0.47	7	0.28	32	1.26	18	0.71
1/2	1/8	14	0.55	7	0.28	34	1.34	23	0.91
	1/4	14	0.55	7	0.28	35	1.38	23	0.91
	3/8	14	0.55	7	0.28	36	1.42	23	0.91
3/4"	1/8	14	0.55	7	0.28	34	1.34	29	1.14
	1/4	14	0.55	7	0.28	35	1.38	29	1.14
	3/8	14	0.55	7	0.28	36	1.42	29	1.14
	1/2	14	0.55	7	0.28	39	1.54	29	1.14
1"	1/4	17.5	0.69	9	0.35	41	1.61	35	1.38
	3/8	17.5	0.69	9	0.35	42	1.65	35	1.38
	1/2	17.5	0.69	9	0.35	45	1.77	35	1.38
	3/4"	17.5	0.69	9	0.35	45	1.77	35	1.38
1-1/4	1/4	18	0.71	10	0.39	42	1.65	45	1.77
	3/8	18	0.71	10	0.39	43	1.69	45	1.77
	1/2	18	0.71	10	0.39	46	1.81	45	1.77
	3/4"	18	0.71	10	0.39	46	1.81	45	1.77
	1"	18	0.71	10	0.39	50	1.97	45	1.77
1-1/2	1/4	18.5	0.73	10.5	0.41	42.5	1.67	50	1.97
	3/8	18.5	0.73	10.5	0.41	43.5	1.71	50	1.97
	1/2	18.5	0.73	10.5	0.41	46.5	1.83	50	1.97
	3/4"	18.5	0.73	10.5	0.41	46.5	1.83	50	1.97
	1"	18.5	0.73	10.5	0.41	50.5	1.99	50	1.97
	1-1/4	18.5	0.73	10.5	0.41	50.5	1.99	50	1.97
2"	3/8	20	0.79	11	0.43	45	1.77	62	2.44
	1/2	20	0.79	11	0.43	48	1.89	62	2.44
	3/4"	20	0.79	11	0.43	48	1.89	62	2.44
	1"	20	0.79	11	0.43	52	2.05	62	2.44
	1-1/4	20	0.79	11	0.43	52	2.05	62	2.44
	1-1/2	20	0.79	11	0.43	52	2.05	62	2.44
2-1/2	3/4"	22.5	0.89	13	0.51	52.5	2.07	78	3.07
	1"	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	1-1/4	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	1-1/2	22.5	0.89	13	0.51	56.5	2.22	78	3.07
	2"	22.5	0.89	13	0.51	57.5	2.26	78	3.07
3"	1-1/2	25	0.98	15	0.59	61	2.4	91	3.58
	2"	25	0.98	15	0.59	62	2.44	91	3.58
	2-1/2	25	0.98	15	0.59	64.5	2.54	91	3.58
4"	2"	27	1.06	15	0.59	64	2.52	117	4.61
	2-1/2	27	1.06	15	0.59	66.5	2.62	117	4.61
	3"	27	1.06	15	0.59	69	2.72	117	4.61

Tolerance: +0.5mm(1/8"~2")

+0.8mm(2-1/2"~4

stainless steel hex nipples thickness

Steel Nipples - Schedule 40 Welded

Size in	Close Length in	Weight per Each (lb)
		Packing (Inner/Master)
		Close	1-1/2	2	2-1/2	3	3-1/2	4	4-1/2	5	5-1/2	6	7	8	9	10	11	12
1/8	3/4	0.01	0.02	0.03	0.04	0.05	0.06	0.07	0.08	0.09	0.10	0.12	0.15	0.16	0.18	0.21	0.23	0.25
1/8	3/4	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/200	25/200	25/200	25/200
1/4	7/8	0.02	0.04	0.06	0.07	0.09	0.11	0.13	0.14	0.16	0.18	0.20	0.23	0.27	0.30	0.34	0.38	0.41
1/4	7/8	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/300	25/300	25/300	25/200	25/200	25/200	20/160	20/160	20/160
3/8	1	0.03	0.06	0.09	0.11	0.14	0.16	0.19	0.22	0.24	0.27	0.30	0.35	0.40	0.46	0.51	0.56	0.62
3/8	1	25/400	25/400	25/400	25/400	25/400	25/300	25/300	25/200	25/200	25/200	25/200	25/150	25/150	25/100	25/100	25/100	25/100
1/2	1-1/8	0.05	0.08	0.12	0.15	0.19	0.22	0.26	0.29	0.33	0.36	0.40	0.47	0.54	0.61	0.68	0.75	0.83
1/2	1-1/8	25/400	25/400	25/400	25/300	25/300	25/200	25/200	25/200	25/150	25/150	25/150	25/100	25/100	25/100	25/75	25/75	25/75
3/4	1-3/8	0.08	0.10	0.15	0.20	0.24	0.29	0.34	0.39	0.43	0.48	0.53	0.62	0.72	0.81	0.91	1.00	1.09
3/4	1-3/8	25/400	25/400	25/300	25/300	25/200	25/200	25/150	25/150	25/100	25/100	25/100	25/75	25/75	25/50	25/50	25/50	25/50
1	1-1/2	0.14		0.16	0.23	0.30	0.37	0.44	0.51	0.58	0.65	0.72	0.86	1.00	1.14	1.28	1.42	1.56
1	1-1/2	25/200		25/200	25/150	25/150	25/100	25/100	25/100	25/75	25/75	25/50	25/50	25/50	25/50	20/40	20/40	20/40
1-1/4	1-5/8	0.21		0.27	0.36	0.45	0.55	0.64	0.74	0.83	0.93	1.02	1.21	1.40	1.59	1.78	1.97	2.16
1-1/4	1-5/8	25/150		25/100	25/100	25/100	25/50	25/50	25/50	25/50	25/50	25/50	15/30	15/30	15/30	-/30	-/30	-/30
1-1/2	1-3/4	0.26		0.32	0.43	0.55	0.66	0.77	0.89	1.00	1.11	1.23	1.45	1.68	1.91	2.13	2.36	2.59
1-1/2	1-3/4	25/100		25/100	25/50	25/50	25/50	25/50	25/50	20/40	20/40	20/40	-/35	-/35	-/35	-/15	-/15	-/15
2	2	0.46			0.61	0.76	0.91	1.07	1.22	1.37	1.52	1.68	1.98	2.28	2.59	2.89	3.20	3.50
2	2	25/50			25/50	-/50	-/25	-/25	-/25	-/25	-/25	-/25	-/18	-/18	-/18	-/14	-/14	-/14
2-1/2	2-1/2	0.75				0.95	1.19	1.43	1.67	1.91	2.16	2.40	2.88	3.36	3.85	4.33	4.81	5.30
2-1/2	2-1/2	-/36				-/36	-/27	-/27	-/24	-/18	-/18	-/18	-/14	-/12	-/12	-/9	-/9	-/9
3	2-5/8	0.99				1.19	1.50	1.82	2.14	2.45	2.77	3.08	3.72	4.35	4.98	5.61	6.24	6.88
3	2-5/8	-/24				-/24	-/18	-/18	-/16	-/12	-/12	-/12	-/9	-/8	-/8	-/6	-/6	-/6
3-1/2	2-3/4	2.08						3.03	3.41	3.79	4.17	4.55	5.31	6.10	6.83	7.59	8.34	9.11
3-1/2	2-3/4	-/15						-/12	-/10	-/8	-/8	-/8	-/5	-/5	-/5	-/4	-/4	-/4
4	2-7/8	1.74						3.59	4.04	4.49	4.94	5.39	6.29	7.19	8.09	8.99	9.89	10.79
4	2-7/8	-/15						-/12	-/10	-/8	-/8	-/8	-/5	-/5	-/5	-/4	-/4	-/4
5	3	4.26						3.83	4.31	5.05	5.72	6.27	6.27	8.70	10.96	11.14	12.25	13.58
5	3	-/4						-/4	-4	-/2	-/2	-/2	-/2	-/2	-/2	-/2	-/2	-/2
6	3-1/8	3.19						4.17	5.06	5.94	6.83	7.72	11.06	11.27	13.04	14.82	16.59	18.37
6	3-1/8	-/4						-/4	-/4	-/2	-/2	-/2	-/2	-/2	-/2	-/2	-/1	-/1
8	3-1/2	6.87										12.83	14.97	17.59	19.24	21.38	23.52	27.12
8	3-1/2	-/1										-/1	-/1	-/1	-/1	-/1	-/1	-/1

Size in	Weight per Each (lb)
	Packing (Pieces / Bundle)
	18	24	30	36	48	60	72
1/2	1.26	1.68	2.11	2.54	3.39	4.25	5.10
1/2	5	5	5	5	5	5	5
3/4	1.67	2.23	2.80	3.37	3.94	5.64	6.78
3/4	5	5	5	5	5	5	5
1	18.03	13.25	4.09	4.93	6.60	8.28	9.96
1	5	5	5	5	5	5	5
1-1/4	3.30	4.44	5.58	6.72	9.00	11.28	13.55
1-1/4	2	2	2	2	2	2	2
1-1/2	3.95	5.31	6.67	8.03	10.75	13.48	16.20
1-1/2	2	2	2	2	2	2	2
2	5.33	7.16	8.99	10.82	14.47	18.13	21.78
2	2	2	2	2	2	2	2
2-1/2	7.73	11.10	14.49	16.90	22.70	30.00	34.00
2-1/2	1	1	1	1	1	1	1
3	10.68	14.47	18.26	22.06	29.64	37.23	44.00
3	1	1	1	1	1	1	1
4	15.18	20.58	25.98	31.38	42.18	52.98	63.78
4	1	1	1	1	1	1	1
6	28.46	34.78	39.68	45.94	56.91	66.40	79.35
6	1	1	1	1	1	1	1

Steel Nipples - Schedule 80 Welded

Size in	Close Length	Weight per Each (lb)
		Packing (Inner/Master)
		Close	1-1/2	2	2-1/2	3	3-1/2	4	4-1/2	5	5-1/2	6	7	8	9	10	11	12
1/8	3/4	0.02	0.04	0.05	0.07	0.08	0.09	0.10	0.11	0.12	0.14	0.16	0.18	0.20	0.22	0.25	0.27	0.30
1/8	3/4	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/400	25/300	25/200	25/200	25/200	25/200
1/4	7/8	0.03	0.05	0.08	0.10	0.13	0.15	0.17	0.19	0.21	0.24	0.27	0.31	0.35	0.39	0.43	0.45	0.48
1/4	7/8	25/400	25/400	25/400	25/400	25/400	25/400	25/300	25/300	25/300	25/200	25/200	25/150	25/150	25/150	25/100	25/100	25/100
3/8	1	0.05	0.08	0.10	0.15	0.18	0.21	0.24	0.27	0.31	0.33	0.37	0.43	0.47	0.53	0.59	0.64	0.70
3/8	1	25/400	25/400	25/400	25/400	25/300	25/300	25/200	25/200	25/200	25/150	25/150	25/150	25/100	25/100	25/100	25/100	25/75
1/2	1-1/8	0.08	0.11	0.15	0.20	0.24	0.29	0.35	0.39	0.42	0.49	0.52	0.60	0.71	0.73	0.89	0.99	1.05
1/2	1-1/8	25/400	25/400	25/400	25/300	25/200	25/200	25/150	25/150	25/150	25/100	25/100	25/100	25/75	25/75	25/50	25/50	25/50
3/4	1-3/8	0.14	0.16	0.22	0.28	0.34	0.40	0.46	0.53	0.59	0.65	0.71	0.83	0.96	1.09	1.21	1.34	1.46
3/4	1-3/8	25/400	25/400	25/200	25/200	25/150	25/150	25/100	25/100	25/100	25/75	25/75	25/75	25/50	25/50	25/50	20/40	20/40
1	1-1/2	0.21		0.31	0.39	0.48	0.58	0.67	0.76	0.86	0.96	1.05	1.26	1.43	1.62	1.80	2.02	2.18
1	1-1/2	25/200		25/200	25/150	25/100	25/100	25/75	25/75	25/50	25/50	25/50	25/50	20/40	20/40	15/30	15/30	15/30
1-1/4	1-5/8	0.31		0.42	0.55	0.65	0.79	0.92	1.06	1.18	1.31	1.43	1.67	1.84	1.54	2.47	2.72	2.99
1-1/4	1-5/8	25/150		25/100	25/100	25/75	25/50	25/50	25/50	25/50	20/40	20/40	15/30	15/30	15/30	- /20	- /20	- /20
1-1/2	1-3/4	0.41		0.49	0.63	0.77	0.94	1.08	1.25	1.38	1.59	1.71	2.04	2.34	2.63	2.88	3.33	3.57
1-1/2	1-3/4	25/100		25/100	25/50	25/50	25/50	25/50	- /50	- /40	- /32	- /32	- /25	- /20	- /20	- /10	- /10	- /10
2	2	0.66			0.89	1.09	1.29	1.51	1.77	1.99	2.24	2.35	2.01	3.17	3.59	4.00	4.40	4.90
2	2	25/50			25/50	- /50	- /25	- /25	- /25	- /25	- /25	- /25	- /18	- /18	- /15	- /12	- /12	- /12
2-1/2	2-1/2	1.19				1.49	1.74	2.05	2.37	2.67	2.98	3.33	3.89	4.61	5.21	5.91	6.50	7.17
2-1/2	2-1/2	-/36				- /36	- /27	- /27	- /24	- /18	- /18	- /18	- /14	- /12	- /9	- /9	- /9	- /8
3	2-5/8	1.75				2.05	2.47	2.90	3.25	3.74	4.15	4.50	5.29	6.27	7.39	8.00	9.76	10.64
3	2-5/8	-/24				- /24	- /18	- /18	- /16	- /12	- /12	- /12	- /9	- /8	- /8	- /6	- /6	- /6
3-1/2	2-3/4	2.61						3.79	4.26	4.74	5.22	5.69	6.64	7.59	8.54	9.49	10.44	11.38
3-1/2	2-3/4	- /15						- /12	- /10	- /8	- /8	- /8	- /5	- /5	- /4	- /4	- /4	- /4
4	2-7/8	2.84						4.12	4.71	5.44	6.07	6.31	8.04	9.18	10.33	11.48	12.63	13.77
4	2-7/8	- /15						- /12	- /10	- /8	- /8	- /8	- /5	- /5	- /4	- /4	- /4	- /4

ss nipple tariff code

HS Code	Description
73072900	TUBE OR PIPE FITTING (FOR EXAMPLE,COUPLINGS,ELBOWS,SLEEVES,)OF IRON OR STEEL SS304 SWAGE NIPPLE,1 X3/4SCH,80
73079990	REDUCED NIPPLE NPT THREAD 1/2 - 3/8 SS316 ITEM.CODE.:HRN-1238
73079990	316 SS nipple 1/8 NPT
73079190	PIPE NIPP., 3/4,SMLS,SCH 80S, SS, 100MM, PIPE NIPPLE, 3/4, SEAMLESS, ASME B36.19M, BBE,
73079990	SS FITTINGS - SS316 3/8 NPT/FxF HEXAGONAL NIPPLE
73072900	SS COUPLINGS : 12 MM MALE THREAD & DN 10 HOSE NIPPLE, SS 316L
73079990	SS FITTINGS -SS 316, 1/2 NB (PL) X 3/4 NB (P) SWAGE NIPPLE
73079990	SS FITTINGS -SS 316, 1/2 NB (PL) X NPT(M) - SCH - 80 PIPE NIPPLE
73079990	SS FITTINGS - SS 316, 1/2NPT(M) X (M) - 2 LG HEX NIPPLE
73072900	S.S. Hex Nipple 3/4 NPT
73072900	S.S. Hex Nipple 6K 1 NPT x BSP
73072900	S.S. Hex Nipple 6K 1 BSP
73072900	S.S. Hex Nipple 6K 1/2 NPTxBSP

buy ss nipple in india

SS Pipe Nipples
Galvanised Bareel Nipples
Buttweld Pipe Nipples
SS Reducing Nipples
Super Duplex Steel Buttweld Pipe Nipples
Reducing Nipples Pipe Fitting
Sch 40 Pipe Nipples
3/8 Pipe Nipples
ASME B16.9 Butt weld Pipe Nipples
Carbon Steel Pipe Nipples
1/2 Pipe Nipples
Titanium Buttweld Pipe Nipples
Barrel Nipples Schedule 40
ANSI B16.9 Buttweld Pipe Nipples
Welded Butt weld Pipe Nipples
ASTM A403 SS Pipe Nipples
High Nickel Alloy Pipe Nipples

Duplex Steel Buttweld Barrel Nipples
Butt Weld Pipe Barrel Nipples
SS Barrel Nipples
SS Pipe Nipples
Brass Pipe Nipples
Brass Barrel Nipples
Gi Pipe Nipples
High Quality Barrel Nipples
Hastelloy Barrel Nipples Stockist
Seamless Butt weld Barrel Nipples
Inconel Butt weld Barrel Nipples
SS Barrel Nipples in India
Reducing Nipples 3/4 to 1/2
ASME B16.28 Buttweld Barrel Nipples
SS Hex Reducing Nipples
Steel Barrel Nipples Pipe Fittings
Copper Nickel Barrel Nipples

High quality stainless steel conduit nipples, stainless steel threaded pipe nipples exporter, buy ss hexagon nipple, ss hydraulic hex nipple at dealer price, See b16.9 buttweld stainless steel nipples, check stainless steel barrel nipples, stainless steel pipe nipple size chart

SS Pipe Nipples Application Industries

Ship building
Petrochemical
Steel plant
Refineries
Chemical
Fertilizers
Power plant
Oil & gas
Offshore

stainless steel pipe nipple manufacturer in ahmedabad, Factory Cheap Price of 3/4 ss nipple, ss 304 hex nipple, wholesaler of stainless steel braided hoses with threaded nipples in Mumbai, most reliable stainless steel pipe fittings nipple importer
